B117 Climatic Salt Spray Test Cabinet For Research Center

Ask Lasest Price
Brand Name :	LIB INDUSTRY
Model Number :	S-250
Certification :	CE,RoHS,ISO17025
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability :	360 sets / quarter
Delivery Time :	5-14 days

Add to Cart

Product Details
Company Profile

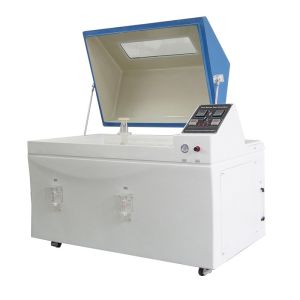

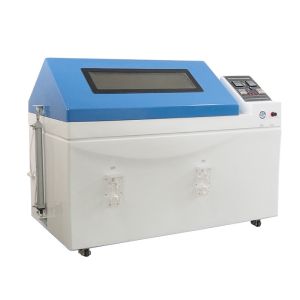

B117 Climatic Salt Spray Test Cabinet For Research Center

B117 Climatic Salt Spray Testing Cabinet

Description

The B117 Climatic Salt Spray Testing Cabinet is based on the evaluation of the corrosion resistance and corrosion resistance of the materials and their protective layers and the comparison of the processing quality of similar safety protection layers. At the same time, it evaluates the corrosion resistance and corrosion resistance of some raw materials.

Products Parameters

Name	B117 Climatic Salt Spray Testing Cabinet
Model	S-250
Internal dimensions	6401000500(mm)
Overall dimensions	81018001180(mm)
Temperature range	Ambient ～60℃
Humidity range	95% ~ 98% RH
Temperature fluctuations	+/- 0.5 ℃
Temperature deviation:	+/- 2.0 ℃
Test time	1~999 hours, settable
Spray deposition	1～2ml / 80cm2 · h
Spray type	Continuous / Periodic
Temperature Controller	LED display, P.I.D+S.S.R. microcomputer integrated controller
Temperature sensor	PT100Ω / MV A-class
Salt fog collected	Fog collector and fog measure cylinder
salt water filtration	Salt water filter near the suction tubes( Avoid the nozzle blockage)
Salt water preheating	Saturated air barrel
Spraying system	Atomizer tower and Spray nozzles (Fog is more fine and uniform distribution)
Interior /Exterior material	Glass fiber reinforced plastics
Standard configuration	Sample bracket / sample holder / spray nozzle / Fog collectors / measure cylinder
safety device	over-temperature protection, water shortage protection, over current protection, earth leakage protection
Sealing	Hydrostatic hood seal
Standard	ISO 3768/3769/3770, DIN50021-75, ASTM B-117, JIS H8502, IEC 68-2-11,IEC68-2-52, MIL-STD-750, ISO 9227
Power Supply	220V 50HZ

Design and Construction


Temperature sensor	Spray Tower	Test Area

Characteristics

1. Various complexes can be reproduced in one salt spray test chamber, cycling under three or four conditions: spray, dry, 100% humidity and static.

2. It is easy to compile the cycle program or directly run the test program that comes with the salt spray test chamber.

3. The salt spray test cabinet can quickly change the temperature of the chamber due to its unique in-box heater and large-capacity dry-cooling blower.

4. The all-plastic structure salt spray chamber is made of sturdy glass fiber reinforced plastic, which is anti-corrosion and does not cause pollution to the sample. Robust material facilitates accurate temperature control.

5. The spray control test machine has better atomization and dispersion effect than ordinary test machines, and can independently adjust the spray amount and spray distance.

7. Reliability The test equipment is equipped with the following safety sensors, in case of failure, these detectors will send a signal to the controller and stop the work of the corresponding parts.
