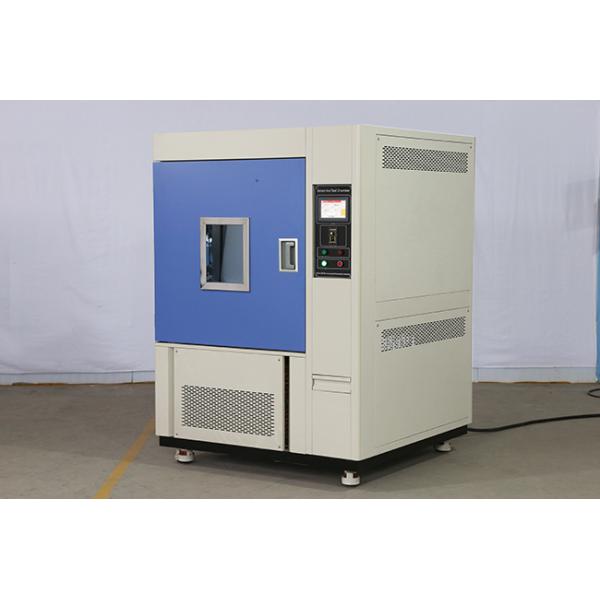

Xenon Arc Accelerated Weathering Test Chamber Weatherometer With Sunlight Temperature Humidity and Water

●ISO 105-B02/B04/B06

●ISO4892-2

● ISO11341

●AATCC TM16

●TM169

●ASTM G155-1/155-4

●JIS L0843

●SAEJ1960/1885

●JASOM346

●IEC61215

● IEC62688

●custom-made

●SUS 304 stainless-steel with thickness 2.5 mm

●Easy to operate,Multi-language to choose

●Add compressor

●Water filtration system

Xenon Arc Accelerated Weathering Test Chamber Weatherometer With Sunlight Temperature Humidity and Water is a comprehensive climate testing machine, it can do climatic aging test, and also can do fading acceleration test under color effect or color changed. The test range including: dying and finishing,printing, leather, plastic, plyglass, painting, textile, printing ink, rubber and also the industry relative color. Light fastness and fade grade can be known in short time. Those materials exposed at simulated sunlight to evaluated the material’s light fastness performance. To simulate and strengthen the test according to light energy, temperature, rain fall or condensation,humidity,etc. these main climate factors. Adopt simulated sunlight spectrum’s Xenon arc light to create destructive waves under different environment. It can be used for choosing new materials, improving existing materials, or assessment of durability change after material composed.

●1 piece of 6500 W water-cooled xenon lamp with inner quartz and outer borosilicate filter
●Programmable color display touch screen controller to control and display test parameters
●Measurement and control of Irradiance 280-800 nm
●Measurement and control of Black Panel Temperature( BPT)
●Measurement and control of Chamber Temperature
●Measurement and control of Chamber humidity
●Water spray system with build-in 50L water reservoir
●Control panel located on right side of test chamber
●Safety protection system
●380V, 50Hz

Test Area and Sample Holder

Test area is made of stainless-steel.
Flat type workroom
A shelf for placing test specimens

Control Panel
Programmable color display touch screen controller, PC Link, R-232 interface
Program: 100 groups in 999 sections

Viewing Window

Large viewing window

Can observe samples during testing

Irradiation Source - Xenon Arc Lamp
Irradiation Source with 1 piece of 6500 W water-cooled xenon lamp with inner quartz and outer borosilicate filter
Average Lamp Life is 1600hours.

●Humidifier dry-combustion protection

●over-temperature protection
●over-current protection

●Refrigerant high-pressure protection

●Water shortage protection
●Earth leakage protection

​

▶Packed with export standard wooden case.
▶Strong packages can be used for sea, air, railway, truck transport and multimodal transport.

▶Quick ship, some models are in stock, ship in 1-3 days.

▶Package size: 3.9 m³, gross weight: 680kg
